تفاصيل المنتج:
|
| اسم الجهاز: | آلة اختبار الشد | آلة: | مع الكمبيوتر، تقشر لاعبا اساسيا |
|---|---|---|---|
| المعايير: | ISO37، ASTM624B | ضمان: | سنة واحدة |
| مدى الشد: | 5 كجم أو 150 كجم (يشمل جهازي استشعار) | مزود الطاقة: | AC 220V ، 50 هرتز |
| الحجم (الطول × العرض × الارتفاع): | 500 مم × 600 مم × 800 مم | وزن: | 150 كجم |
| إبراز: | ASTM D903 tensile testing machine,servo tensile testing machine with peel fixture,peel off fixture tensile tester,servo tensile testing machine with peel fixture,peel off fixture tensile tester |
||

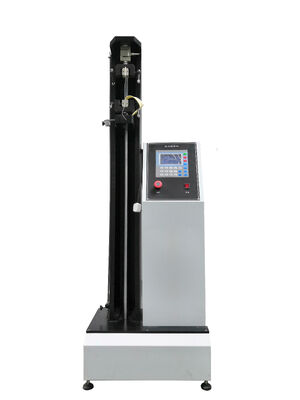

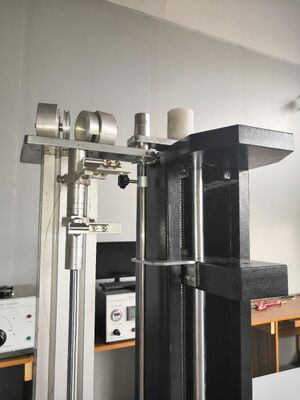

ASTM D903 Servo Tensile Testing Machine with Peel off fixture
1, Scope of application:
Widely applicable, suitable for industries such as rubber, plastic, wire and cable, footwear, leather, textile, papermaking, and metal copper aluminum wire, aluminum foil, etc; Can test the tensile strength, elongation, tear force, adhesion force, peel force, shear force, adhesion force, connection force, etc. of the sample. Using high-precision sensors to achieve high precision in sensing force; The elongation and tensile strength meet the standard ISO37; Tear resistance should refer to the standard ASTM624B.
2, Compliant with standards:
Meets the testing standards of ISO37, ASTM624B, UL1581, IEC 811, and UL817.
3. Technical Parameters / Specifications:
| Category | Parameter | Details / Value |
|---|---|---|
| General | Tensile Range | 5 kg or 150 kg (2 sensors included) |
| Maximum Travel | 400 mm | |
| Load Accuracy | ±0.5% | |
| Load Resolution | 0.01 g | |
| Unit Conversion | kg/lb or g/N | |
| Peak Lock Function | Yes | |
| Motor & Drive | Primary Motor | Panasonic Servo Motor (400W) |
| Speed Regulation Motor | AC Motor with Variable Frequency Drive | |
| Speed Control | Infinite Regulation Range | 0.1 ~ 500 mm/min |
| Preset Gear Speeds | 50, 100, 250, 350, 500 mm/min (freely switchable) | |
| Speed Accuracy | 50±0.5 mm/min, 500±1.0 mm/min | |
| Measurement | Induction Method | High-precision Sensor |
| Application Tool | Pressure Plate Tool | Diameter: 5 cm (Suitable for compression ratio testing) |
| Experiment Speed (for tool) | 0.5 ~ 500 mm/min | |
| Power & Dimensions | Power Supply | AC 220V, 50Hz |
| Body Size (L x W x H) | 500 mm x 600 mm x 800 mm |
