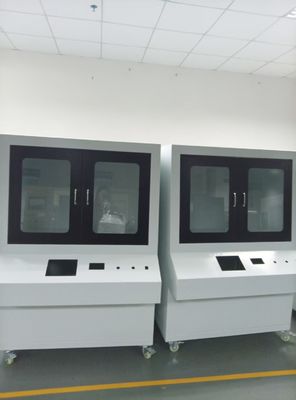

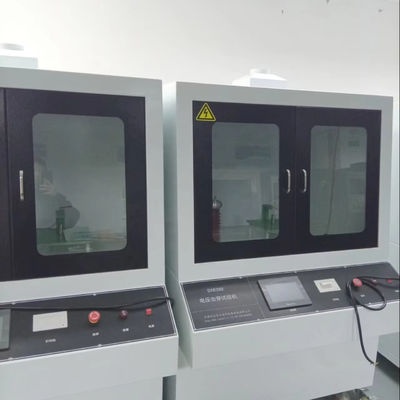

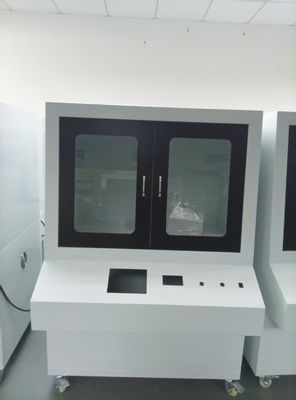

Customized OBM Support 220V Voltage Breakdown Testing Machine For Effective Testing

صورة كبيرة : Customized OBM Support 220V Voltage Breakdown Testing Machine For Effective Testing

تفاصيل المنتج: شروط الدفع والشحن:

الأسعار:	CN¥14,285.80/boxes >=1 boxes

اتصل

Customized OBM Support 220V Voltage Breakdown Testing Machine For Effective Testing

وصف

الضمان:	سنة واحدة	دعم مخصص:	OEM ، ODM ، OBM ، إعادة هندسة البرمجيات
مكان المنشأ:	غوانغدونغ، الصين	brand name:	DAXIAN
القوة:	5 كيلو فولت أمبير	الدقة:	≤ 5٪
الجهد:	220 فولت	النوع:	آلة الاختبار
فئة الحماية:	IP65	التسرب الحالي:	أقل من 30mA
الوزن:	200 كجم	تسرب الاختيار الحالي:	1-20 م
قدرة المحول:	10 كيلو فولت أمبير	تيار الخروج:	100 مللي أمبير
تردد الطاقة:	موجة جيبية 50 هرتز	دقة قياس الجهد:	≤ 5٪
معدل الزيادة:	0.4kv/s إلى 10 كيلو فولت/ثانية	جهد الانهيار:	0-50kV
طرق الاختبار:	اختبار العاصمة ، اختبار التيار المتردد
إبراز:	Effective Breakdown Testing Machine,220V Breakdown Testing Machine,Customized OBM Breakdown Testing Machine , 220V Breakdown Testing Machine , Customized OBM Breakdown Testing Machine

Company Profile

DAXIAN INTERNATIONAL EQUIPMENT CO., LTD is Located in Dongguan City, Guangdong Province, China, we are a high tech enterpris which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others DAXIAN's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc
. All DAXIAN testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on

Products Description

Specification

Item	Value
Warranty	1 YEAR
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	China
	Guangdong
Brand Name	DAXIAN
Model Number	DX8413
Power	Electronic
External dimensions	800 700 1350mm
Electrode weight	50G
Electrode	Electrode weight
Input voltage	AC 220 V
Test method	Test methodTest method5,
Electrical capacity:	1.5 KVA
Test current:	10MA-20MA-30MA-40MA optional
Current control accuracy	± 10%
Arc on/off time error:	<5ms

Equipment standard: 1. GB1408.1-2006 "Test Methods for Electrical Strength of Insulation Materials" 2. GB1408.2-2006 "Test Methods for Electrical Strength of Insulation Materials Part 2: Additional Requirements for Application of DC Voltage Test 3. GB/T1695-2005 "Determination method for power frequency breakdown voltage strength and withstand voltage of vulcanized rubber" 4. ASTM D149 "Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulation Materials at Industrial Power Supply Frequency"

product overview： This testing machine is suitable for measuring the breakdown strength and withstand time of solid insulation materials such as plastics, films, resins, mica, ceramics, silicone, glass, insulation paints, etc. in air or liquid media at power frequency (48-62Hz) or corresponding DC voltage.

Scope of application: Suitable for continuous and uniform voltage boosting or step-by-step voltage boosting, apply AC/DC voltage to the sample until breakdown, measure the breakdown voltage value, and calculate the breakdown strength of the sample; Using a rapid voltage boost method, raise the voltage to the specified value and maintain it for a certain period of time until the sample does not break down. Set the specified value at this time as the withstand voltage value of the sample.

Main technical parameters of the instrument: 1. Test voltage: AC 0~50 kV continuously adjustable DC 0~50 kV continuously adjustable 2. Transformer capacity: 10 KVA 3. Breakdown voltage: 0~50kV 4. Boosting speed: divided into 10 gears: 50, 100, 200, 500, 1000, 2000 (KV/S) 5. Boost speed regulation: for electrical automatic speed regulation 6. Voltage measurement accuracy: ≤ 5％ 7. Leakage current selection: 1-20 mA 8. Test methods: DC test, AC test 9. Boosting method: automatic programmable boosting 10. Power frequency: 50Hz sine wave 11. Power supply: AC220V 50/60Hz 12. External dimensions: L 1400* W 1040* H 1500 mm 13. Weight: 200KG

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Selection of Packaging Materials： Selection of Packaging Materials 1. Use sturdy and durable packaging boxes to prevent equipment
damage caused by collision or compression during transportation. 2. The interior is filled with shockproof materials, such as
foam, air cushion or pearl cotton, to ensure that the equipment will not shake in the packaging box. 3. For fragile or sensitive
components (such as electrodes, display screens, etc.), package and secure them separately to avoid damage during transportation.
Mode of Transport： 1. Prioritize choosing professional logistics and transportation companies to ensure safety and reliability
during transportation. 2. For long-distance transportation, land or sea transportation should be used to avoid the potential
impact of air pressure changes on equipment during air transportation.

Exhibition

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?

A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
